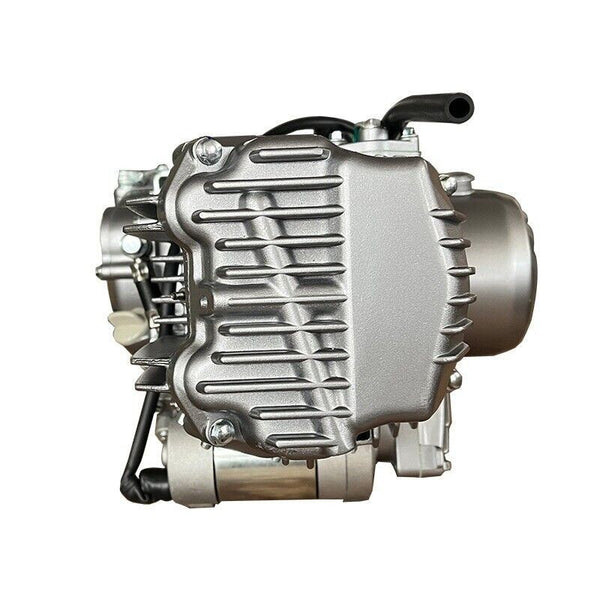

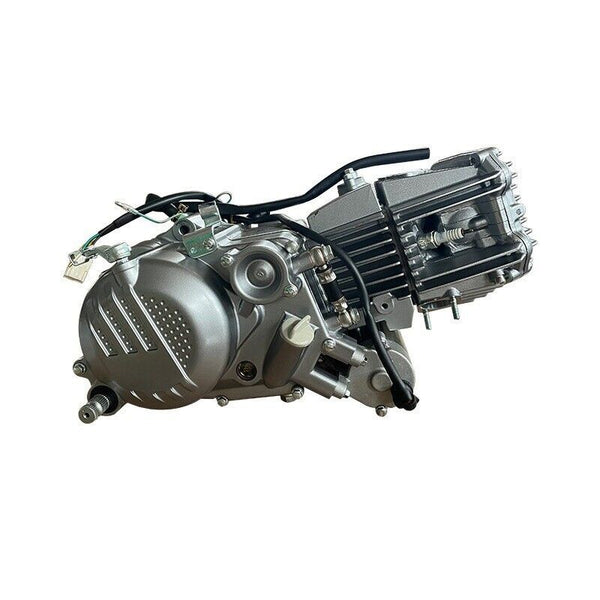

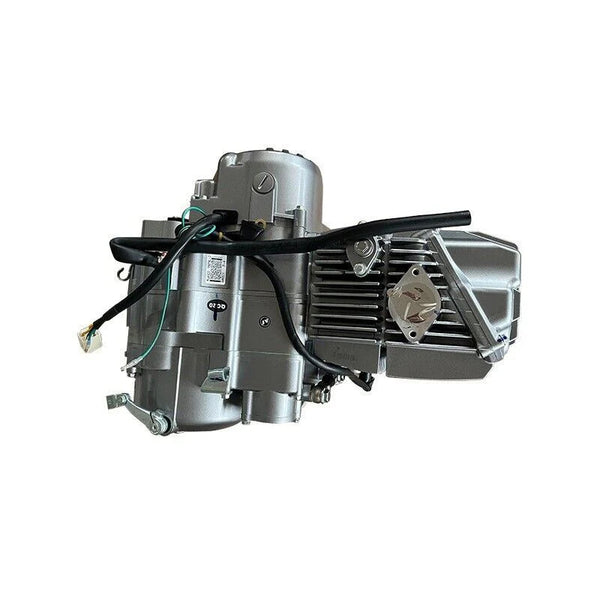

Pitbike Engine W190 190cc Zongshen 5 Speed Manual Electric start C90 SS50

Engine will fit into
Honda C50 70 90 12 v
Honda C50 70 6v
Honda CD CL CF SS 50 12v 4 speed (not moped)
Honda XR50 CRF50
Most Pitbikes

Product specifications

1 PCS Engine W 190 cc
1 Set gaskets inlet manifold spacers
1 PCS inlet manifold
1 PCS kick starter
1 PCS gear shifter

Engine Specifications:

Engine Type: Single-cylinder, 4-stroke, air-cooled

Displacement: 190cc

Bore x Stroke: 66.5 mm x 57.8 mm

Compression Ratio: Typically around 9.0:1

Max Power Output: Around 14 horsepower (HP)

Max Torque: Approximately 14-15 Nm (Newton-meters)

Suitable Fuel System: Carburetor (often a PZ30 or similar)

Ignition: CDI (Capacitor Discharge Ignition)

Lubrication: Wet sump

Cooling System: Air-cooled

Fuel Type: Unleaded gasoline (typically 91+ octane)

Starting System: Electric start + Kick start (electric start being standard)
Engine Length: 460mm
Engine Width: 320mm
Gear configuration: 1 Down 4 up


Transmission and Drivetrain:

Transmission: 5-speed manual gearbox (with standard H-pattern)

Primary Drive: Chain drive or gear-driven (depending on application)

Final Drive: Chain 428H


Other Features:

Clutch Type: Wet multi-plate clutch

Valve Configuration: SOHC (Single Overhead Cam), 2 valves

Spark Plug: Commonly used spark plugs are NGK CR7HSA or similar

Exhaust System: Standard exhaust with some models having performance exhaust options

I have most other components in my store if needed
Foot pegs
Mounting bolts
Wiring loom/HT coil/CDI






If you purchase more then one item from our store you maybe able to get a discount.Please contact for more information
